$199.99

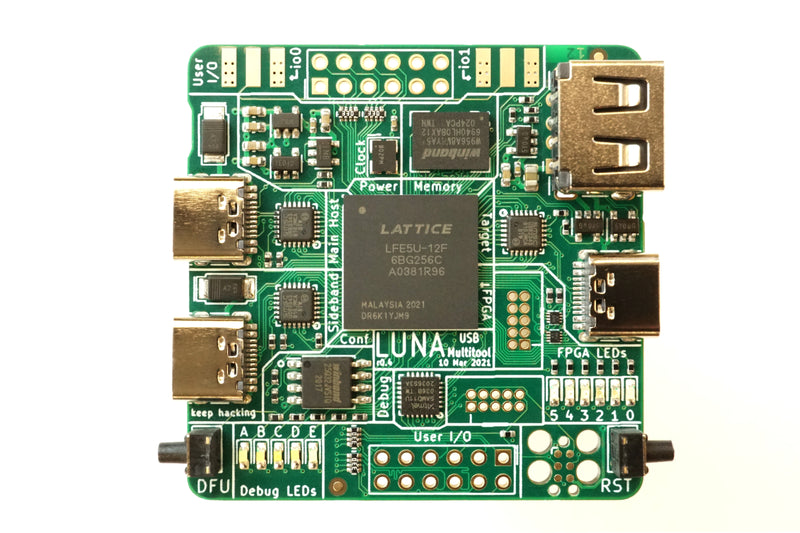

Cynthion is an all-in-one tool for building, testing, monitoring, and experimenting with USB devices. Built around a unique FPGA-based architecture, Cynthion's digital hardware can be fully customized to suit the application at hand. As a result, it can act as a no-compromise High-Speed USB protocol analyzer, a USB-hacking multi-tool, or a USB development platform.
Out-of-the-box, Cynthion acts as a USB protocol analyzer capable of capturing and analyzing traffic between a host and any Low-, Full-, or High-Speed ("USB 2.0") USB device. It works seamlessly with our open-source ViewSB software, which translates captured USB traffic into a human-readable format. ViewSB runs on Linux, MacOS, Windows, and FreeBSD.
Combined with the Cynthion software and the FaceDancer libraries, Cynthion becomes a versatile USB-hacking and development tool. FaceDancer makes it quick and easy to create or tamper with real USB devices—not just emulations—even if you don’t have experience with digital-hardware design, HDL, or FPGA architecture!
Cynthion is a fully reconfigurable test instrument that provides all the hardware, gateware, firmware, and software you will need to work with—and, indeed, to master—USB. Below are a few of the challenges to which you’ll be able to apply your Cynthion:
(Click to expand.)
Cynthion includes all of the hardware necessary for low-, full-, or high-speed USB protocol analysis – which means it can provide the same functionality as expensive commercial USB analyzers like the TotalPhase Beagle 480 or the LeCroy Mercury series.
Unlike existing USB solutions, however, Cynthion's analyzer stack is built entirely upon powerful, open-source tooling. By leveraging the remarkable nMigen gateware-generation library and ultra-fast open FPGA tools, Cynthion can automatically customize itself to the task at hand, which gives it access to unique features like user-defined hardware triggering and simultaneous capture of additional external or internal signals.
Cynthion uses the open-source ViewSB analyzer frontend, which is a powerful, cross-platform tool for capturing, viewing, and analyzing USB data. ViewSB helps make USB traffic more human-readable while processing that traffic at any level of abstraction. And because it is completely open-source and extensible, you can add it to your own custom analysis layer simply by creating a single Python file.
A fully open-source set of training materials walk you through the basics of USB - including descriptions and diagrams of the basic elements of USB, such as USB Transfers pictured here. Click to expand.
The Cynthion team has a long history of USB education. We’ve developed a number of open-source USB trainings and workshops at varying difficulty levels. Over the course of this campaign, we will develop and maintain additional Cynthion-specific material that will help you learn how to work with—and hack on—USB.
Cynthion's customizable architecture allows you to do more than just watch the packets fly by. Using Cynthion, you can reach out and touch USB traffic at every level. It’s a lot easier to learn how something works when you can take it apart, poke around inside it, and manipulate it in clever ways. Cynthion gives you that level of control.
Cynthion was built from the ground-up to facilitate the process of creating new USB devices. Whether you’re a veteran low-level hardware designer or completely new to this, Cynthion will make your life easier in several ways.
First of all, its FaceDancer backend allows you to describe entire custom USB devices quickly, using just a few lines of Python, so you can try them out right away on real hardware. And, to help you get started, FaceDancer comes with a collection of existing device templates:
# Using a FaceDancer pre-made device, you can create a
# "USB rubber ducky" with only a few lines of python!
device = USBKeyboardDevice()
async def type_letters():
await device.type_string('r', modifiers=KeyboardModifiers.MOD_LEFT_META)
await asyncio.sleep(0.5)
await device.type_string('calc\n')
main(device, type_letters())
And, for those with an interest in FPGA design, Cynthion's unique nMigen library makes it almost trivial to implement USB gateware. Have a look at our library of examples and start building your own gateware devices in no time!
Cynthion is as useful when working with existing USB devices as it is when designing new ones. By giving you the ability to inject or modify USB data transparently—on the fly—it allows you to do things that would otherwise be impossible. And its support for FaceDancer’s USBProxy means that manipulating USB data on the wire is as easy as writing a few lines of Python:
# USBProxy makes manipulating USB data trivial!
# The following few lines are enough to flip the X-axis
# on a Nintendo-branded USB game controller:
class SwitchControllerInvertXFilter(USBProxyFilter):
def filter_in(self, ep_num, data):
# The fourth byte of our packets contains the
# joystick X position, as a number between 0 and 255.
data[3] = 0xff - data[3]
return ep_num, data
Cynthion's USB peripherals are customized for each USBProxy application, so you’re not restricted to certain USB device configurations. It is theoretically possible to proxy just about any USB device in existence!
As a Great Scott Gadgets (GSG) product, Cynthion was designed from the beginning to enable new and innovative research, but it also supports a multitude of security and reverse-engineering applications:
yosys+nextpnr open-source FPGA flowTo protect your Cynthion while in use, we’ve commissioned an expert designer to create a beautiful and robust milled-aluminum enclosure that completely surrounds and protects Cynthion's electronics:
3D render of Cynthion in its CNC-milled aluminum enclosure
Each case will be precisely CNC-milled from solid aluminum, then anodized for a sleek, matte-black surface finish. The case design features an intricate internal pattern tailored exactly to the Cynthion it will contain. This customization maximizes case density for robust protection and an unusually solid feel – without compromising Cynthion's tiny size or light weight.
During the campaign, Cynthion can be purchased with or without its enclosure.
| Cynthion | Beagle USB 12 | Beagle USB 480 | USB Explorer 200 | OpenVizsla | PhyWhisperer-USB | GreatFET One | |
|---|---|---|---|---|---|---|---|
| Low-/Full-Speed Support | Y | Y | Y | Y | Y | Y | Y |
| High Speed Support | Y | N | Y | Y | Y | Y | N |
| USB Analysis Supported | Y | Y | Y | Y | Y | limited | N |
| External Buffer DRAM | Y | N | Y | Y | Y | N | N |
| Advanced Analysis Triggering | Y | N | Limited | Limited | N | Y | N |
| Supports User USB Designs | Y | N | N | N | Unofficial ¹ | Unofficial ¹ | Y |
| FaceDancer Support | Y | N | N | N | N | N | Full-speed only |
| MITM Support | Y | N | N | N | N | N | Limited |
| USB Device-capable ports ² | 3 | 0 | 0 | 0 | 1 | 1 | 1 |
| USB Host-capable ports ³ | 1 | 0 | 0 | 0 | 0 | 0 | 1 |
| Target Power Control | Y | N | N | N | N | Y | Host mode only |
| Extra/User I/O | 16 (PMOD) + 2 (SMA) | 0 | 4 (mini-DIN connector) | 0 | 22 (0.1" header) | 12 (CW connector) | 100 (0.1" header) |
| LEDS / Unique Colors | 11 / 9 | 1 / 1 | 3 / 2 | 3 / 1 | 3 / 2 | 5 / 3 | 4 / 2 |
| Onboard Debug Hardware ⁴ | Y | N | N | N | UART only | UART only | Y |
| Standalone Operation Capable ⁵ | Y | N | N | N | N | N | Limited |
| User-Customizable FPGA | Y | N | N | N | Y | Y | N/A |
| usbc.tf Training Materials | Y | N | N | N | N | N | Y |
| Open HW/FW/SW | Y | N | N | N | Y | Y | Y |
| Open Toolchain | Y | N | N | N | N (ISE) | N (Vivado) | Y (non-FPGA) |
| Size Equivalent | Saltine cracker or 6x6 LEGO® tile | Deck of cards | Nintendo Switch | Two bricks | Nintendo Switch | Deck of cards | Deck of cards |
| Cost (USD or USD equivalent) | $149 | $495 | $1,295 | $1,599 | $180 ⁶ | $250 | $89 |
¹ By replacing official gateware with Cynthion's open gateware
² Via Cynthion Gateware, TinyUSB SoC, or FaceDancer
³ Via FPGA Gateware
⁴ To debug USB/FPGA designs
⁵ For user gateware or firmware designs
⁶ No longer directly available (price from a third-party manufacturing the open design)
The Cynthion project—including its hardware, gateware, firmware, and software—has been developed and enhanced in the open on GitHub. You can view its annotated hardware designs on GitHub, and its developer documentation on ReadTheDocs.
We welcome questions and discussion in the Cynthion Discord Channel or via a bridge to the Cynthion IRC Channel.
